Single Mode Bare Fiber Ribbon - 12 fibers

Tempat asal	Cina
Nama merek	DAWNERGY
Sertifikasi	CE ROHS

Rincian Produk

Jenis serat:

Pita Serat Telanjang Mode Tunggal

Jumlah serat:

12 serat

Bahan Serat:

Corning G657A2 + lapisan resin

Struktur:

pita baris datar yang diikat dengan pita matriks

Lebar:

3050±50 m

Ketebalan:

350±50 μm

Kebosanan:

≤50 μm

redaman 1310nm:

≤0,36 dB

redaman 1550nm:

≤0,22 dB

Keunggulan Inti:

mendukung penyambungan massal (sambungan simultan 12 serat)

Ketentuan Pembayaran & Pengiriman

Syarat-syarat pembayaran

L/C,D/A,D/P,T/T

Deskripsi Produk

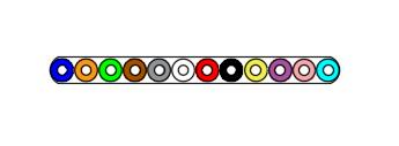

Single Mode Bare Fiber Ribbon - 12 fibers Description F iber optic ribbon is a flat, parallel strip made of multiple optical fibers bonded together side-by-side . Features l Structure: C ontains 12 individual glass fibers laid in a flat row and held by a matrix or tape. l Mass Splicing: Allows workers to splice an entire group of fibers (like all 12 at once) in a single machine cycle instead of splicing them one by one Specifications Parameters 2x16 Material Corning G657A2
