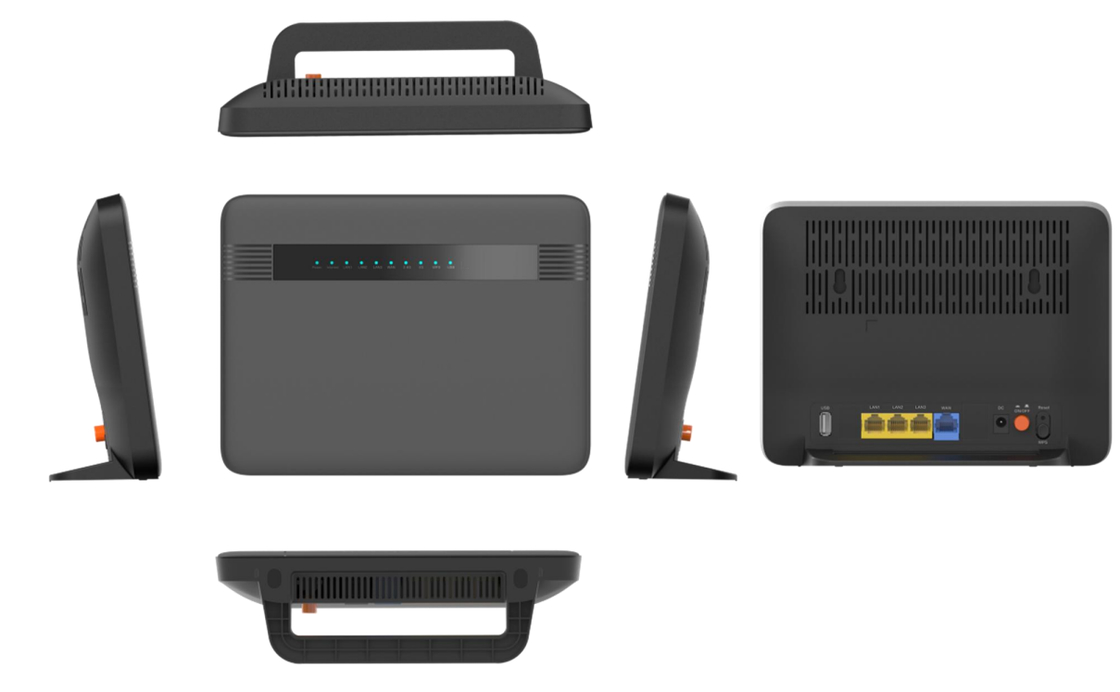

DA-MR-R624-6 AX3000 Wi-Fi 6 Mesh Router with GPON
  • DA-MR-R624-6 AX3000 Wi-Fi 6 Mesh Router with GPON
DA-MR-R624-6 AX3000 Wi-Fi 6 Mesh Router with GPON

DA-MR-R624-6 AX3000 Wi-Fi 6 Mesh Router with GPON

Tempat asal Cina
Nama merek Dawnergy
Nomor model DA-MR-R624-6
Rincian Produk
Menyoroti:

AX3000 Wi-Fi 6 mesh router

,

GPON mesh router with Wi-Fi 6

,

fiber optic mesh router

Ketentuan Pembayaran & Pengiriman
Kemasan rincian
Karton
Waktu pengiriman
5-8 hari kerja
Syarat-syarat pembayaran
L/C, D/A, D/P, T/T, Western Union, Moneygram
Deskripsi Produk
DA-MR-R624-6 AX3000 Wi-Fi 6 Mesh Router with GPON
DA-MR-R624-6 AX3000 Wi-Fi 6 Mesh Router with GPON 0 DA-MR-R624-6 AX3000 Wi-Fi 6 Mesh Router with GPON 1
The DA-MR-R624-6 combines advanced GPON technology with Wi-Fi 6 mesh capabilities, delivering high-speed connectivity with seamless coverage throughout your space.
Technical Specifications
GPON Specifications
GPON Standards ITU.T G.984, G.988
Optical Module Class B+, BOB
Maximum Distance 20KM
Data Rates Upstream: 1.25Gbps, Downstream: 2.5Gbps
Wave Length 1310nm (Transmit), 1490nm (Receive)
Hardware Specifications
SoC Chipset EN7528HU
Memory 256MB RAM, 128MB Flash
Wi-Fi Chipset 2.4GHz: MT7592N, 5GHz: MT7613B
Interfaces 1 x SC/APC GPON Port, 2 x 10/100/1000Mbps LAN
Antennas 2 x 2.4GHz & 5GHz external antennas (2*5dBi)
Wireless Features
Standards IEEE 802.11 a/b/g/n/ac, WMM, WPS, EasyMesh
Frequency 2.4GHz & 5GHz
Data Rate 2.4GHz: 300Mbps (40MHz), 5GHz: 867Mbps (80MHz)
Advanced Software Features
  • Dual-stack IPv4/IPv6 support
  • Advanced QoS and VLAN management
  • Comprehensive security with SPI firewall and DoS protection
  • VPN passthrough and DDNS support
  • TR-069 remote management
Environmental Specifications
Operating Temperature 0°C to 45°C
Storage Temperature -10°C to 60°C
Humidity 5% to 90% non-condensing
Package Contents
  • 1x GPON ONT
  • 1x Power Adapter (12VDC)
  • 1x Quick Installation Guide
Certifications: CE, WiFi Alliance certified
